KITO - Lifting Points / Magnet

Lifting Points

Wide variations of 21 types from bolt size M8 to M64

Product Features

Flexibly moving shackle in the loading direction! Realizing smooth work
Working load up to 3 times higher than the JIS eye bolt (stationary type) with an identical bolt diameter
Available for side lifting, oblique lifting, raising, etc. considered dangerous for the eye bolt

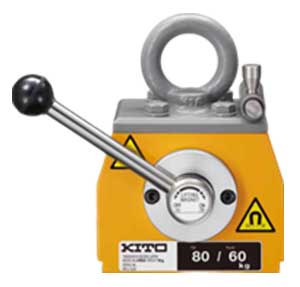

Lifting Magnet

KITO’s KRD series Lifting Magnet allows you to lift both flat and round steel with one unit.

Salient Features:

Due to the use of permanent magnets, loads are securely maintained even if an electrical power outage occurs.
Secure hold using four magnetic poles.
Lineup of seven types with capacities from 80kg to 1.6t.

Operation Conditions

Objects Lifted : Steel plate, shaped steel, round steel and machined steel parts. Holding force is decreased when handling parts with plate thickness of less than 25mm.
Non-magnetic materials such as aluminum, stainless steel, brass, etc. cannot be lifted.
Usage : Internal use only. Not waterproof.
Temperature Range : -20ºC~+50ºC
Humidity : 85% RH or less, with no condensation.
